Description
Dynamic Test System 50 kN / 60 Hz for use with a large climatic chamber / high stiffness test frame 20-61000, 20-61100, 20-60200, or 20-61300 for the determination of the resistance against fatigue, permanent deformation and stiffness of pavement materials. Consisting of:
- High rigid and stiffness test frame 50/63 kN with four columns and mounted servo hydraulic actuator 50/60 kN (dynamic/static load) with internal measurement of the displacement and high accuracy load cell for use in climatic chambers
- Water-cooled hydraulic aggregate with high performance servo-hydraulic valve (on request optional available also air cooled)
- Digital controller with 4 channels (standard configuration), TFT-Monitor and PC
- Including closed loop Controlling- and Data-acquisition System DYNASOFT Windows® based with real-time graphic and test data base for load or displacement controlled tests
- Automatic control of the climatic chamber and dynamic DYNASOFT

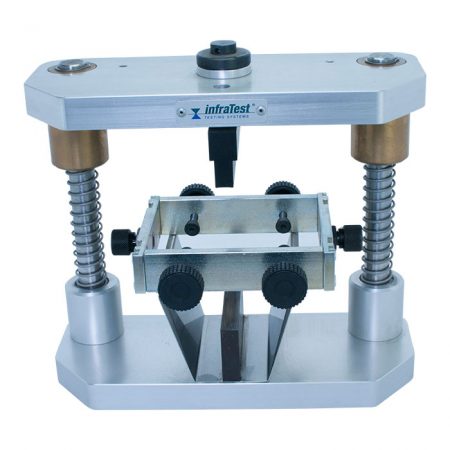

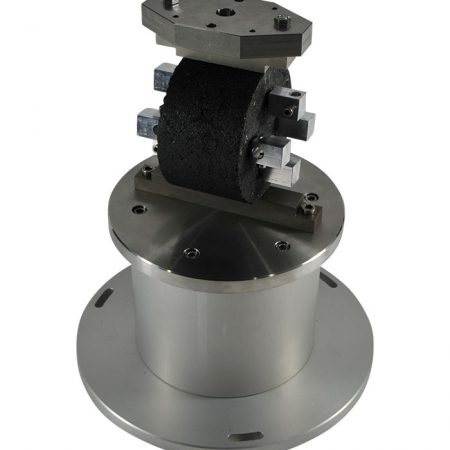

- Free programmable test procedures or standardized test procedures according EN, ASTM, AASHTO or TP Asphalt StB in use with different test frames, for example 20-62500.
Additional test frames or sample adapters have to be ordered separately. An optional use of a second load cell 5 kN or 10 kN is also possible.
Technical Data:
- Load (dynamic):50 kN
- Frequency:60 Hz
- Load cell (standard configuration):50 kN
- Internal displacement transducer:100 mm
- Accuracy:0.001 mm (inbuilt in the actuator)
- Max. Load (dynamic):0.2 up to 50 kN
- Min. Load (dynamic): 0.1 up to 49.99 kN
- Wave shape:Haversine – Sinus – Trapez
- Channels:4 standard channels expandable up to 16 channels
- Dimensions: approx. 1350 x 870 x 1500 mm
- (Air cooler):approx. 1780 x 870 x 1400 mm
- Weight (oil aggregate):approx. 560 kg
- Noise:73 db (A) or 82 db(A) with air cooling system
- Volume cooling fluid:12 l/min and 23°C
