Description

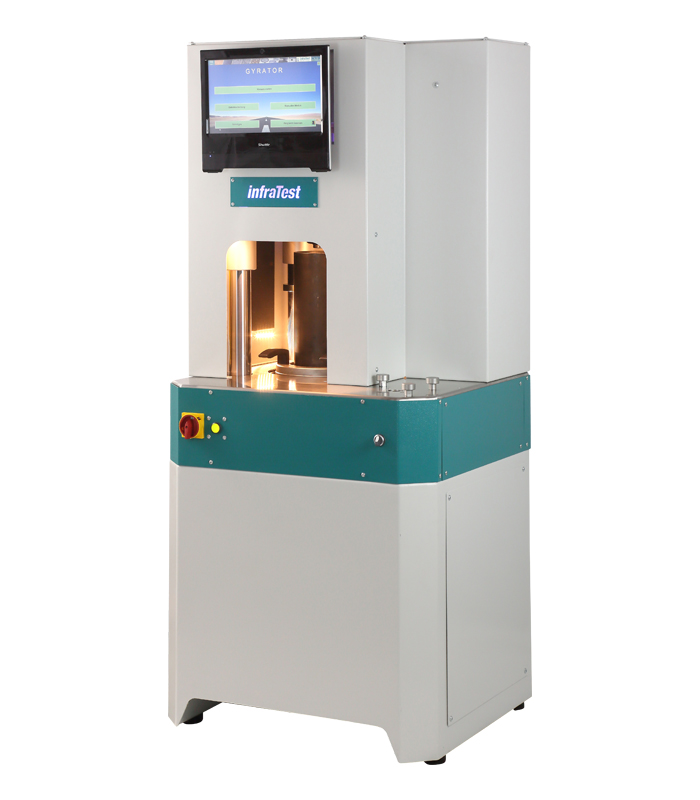

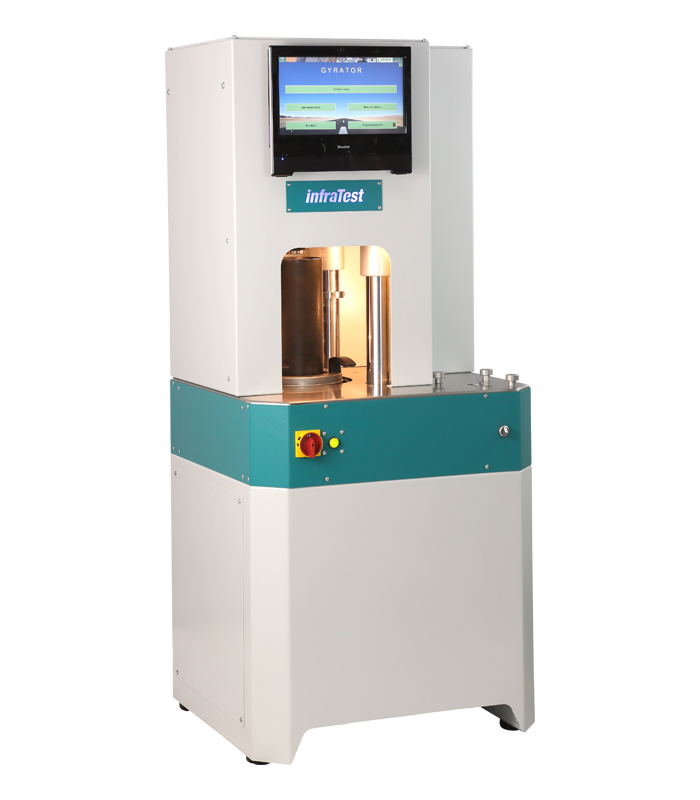

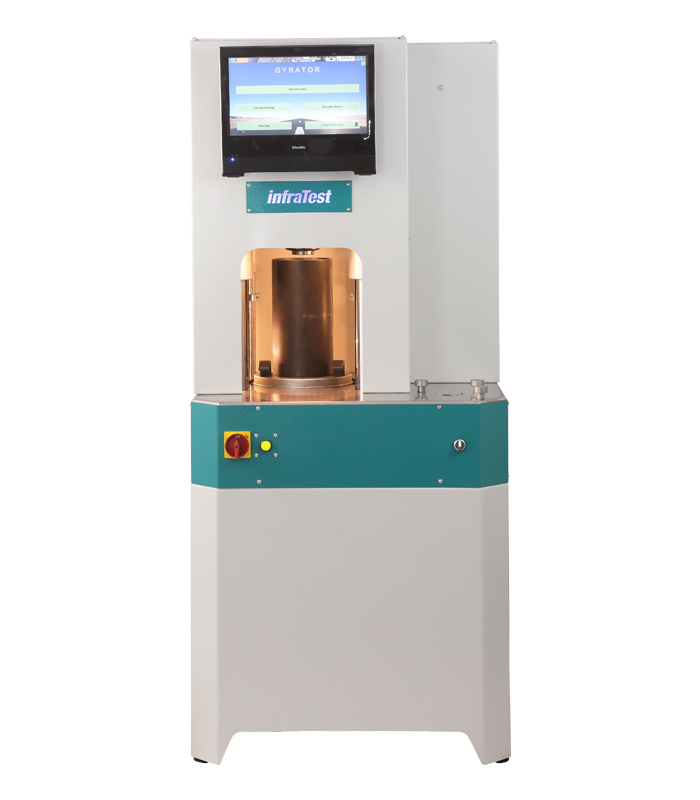

Gyrator iT 2018 for preparation of gyratory specimen with diameter Ø 100 and 150 mm
- fully automatized gyratory compaction and rotation
- Drive electromechanical
- Measurement by integrated load cell
- integrated sample extruder with sample table
- control by integrated computer for automatic compaction
- including evaluation report for sample preparation
- integrated Ethernet port for remote distance control
- Angle adjustable by software
Technical Data:
Compaction Pressure: 1000 kPa
Ram travel: 10 mm per second
Ports: 1x USB, 1x RS232, 1x Ethernet
Speed: up to 30 rpm (±0,5°)
Angle: adjustable 0,5 up 3.5°
Sample size: Ø 100 and 150 mm
Dimension: 803 x 703 x 1800 mm
Weight: approx. 538 kg
Power Supply: 400V, 50/60 Hz, 3 P+N+PE
Power:7 kW
Accessories: Mould Ø 100, Ø 150 mm including Top plates etc. need to be ordered separately
