Beschrijving

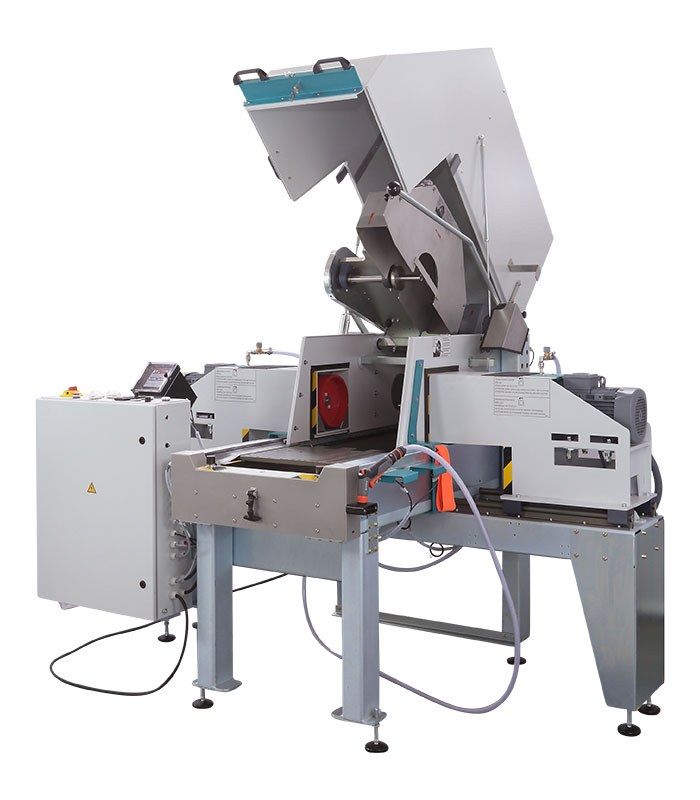

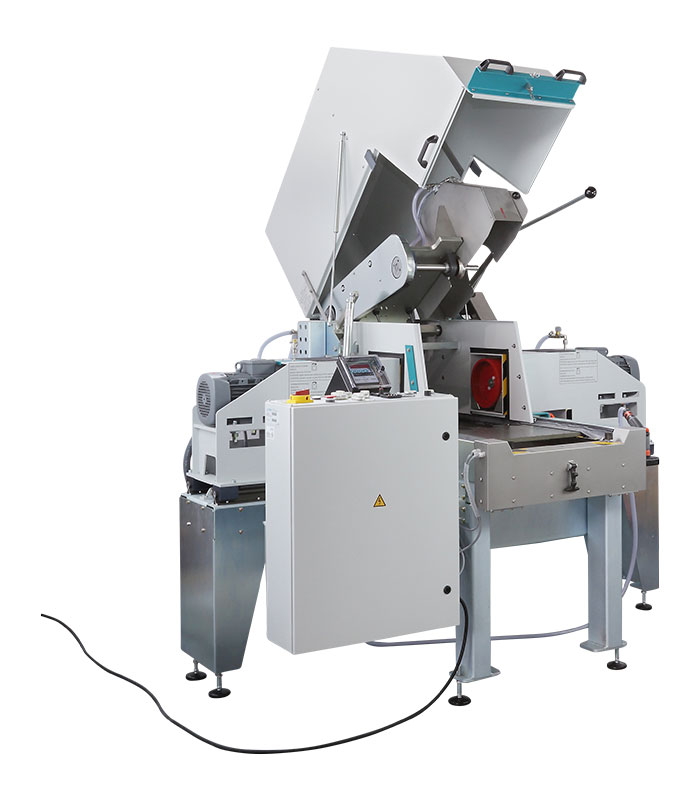

Parallel Grinding and Cutting Machine 650 mm with two electric motors equipped with diamond grinding heads for simultaneous plane-parallel grinding of specimen. Both grinding units can be fine adjusted to achieve parallel sample surfaces. The samples are fixed on an electric driven movable carriage with variable speed range. The diamond grinding heads are equipped with cooling water connection for town water installation. Supplied with industrial safety cover and clamping device for cubes 100 up to 150 mm and cylindrical specimen Ø 100 up to Ø 150 mm. Clamping devices for cubes 50 mm, cubes 200 mm and cylindrical samples Ø 50 mm are available as an option. Supplied with cutting head for diamond saw blades Ø 650 mm If required, a second diamond saw blade can be attached with variable distances from 25 to 60 mm. This installation is suitable to cut particularly prismatic samples out of sample plates up to 410 x 260 x 230 mm. Two diamond grinding heads 210 mm dia. 60-12200 for bituminous mixtures resp. 60-12210 for concrete as well as diamond saw blades Ø 650 mm 60-12400 have to be ordered in addition.
Specification:
- Clamping device for cubes 100 up to 150 and cylindrical samples Ø 100 up to Ø 150 mm
- Sample length min. 50 mm
- Dimensions appr. 1850 x 2150 x 1900 mm (height = 2500 mm when safety cover opened)
- 2 x 3 kW for grinding, 4 kW for cutting
