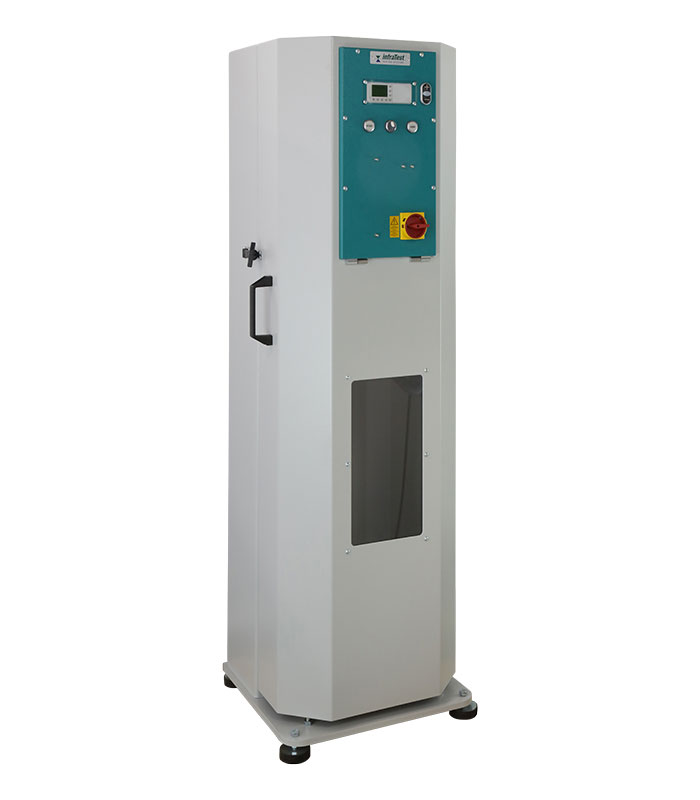

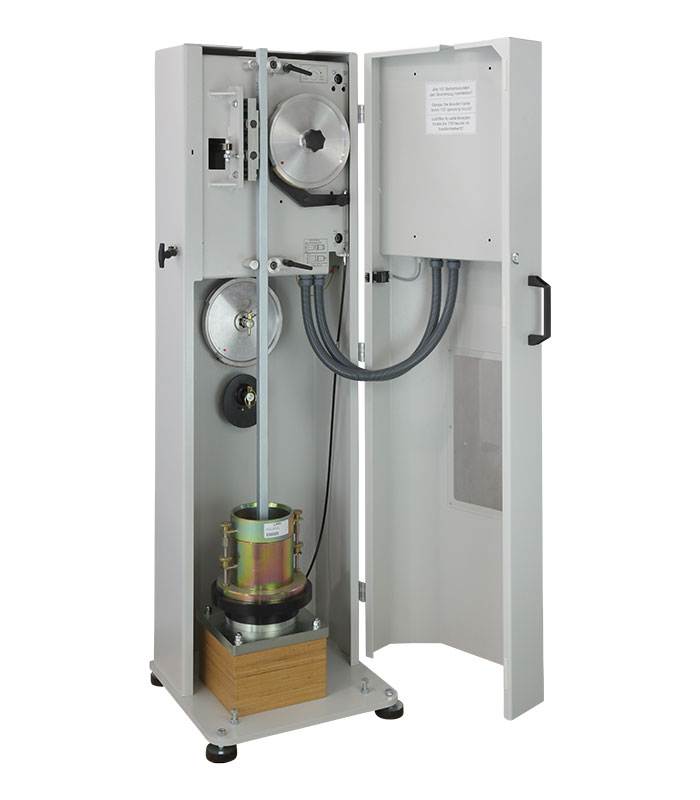

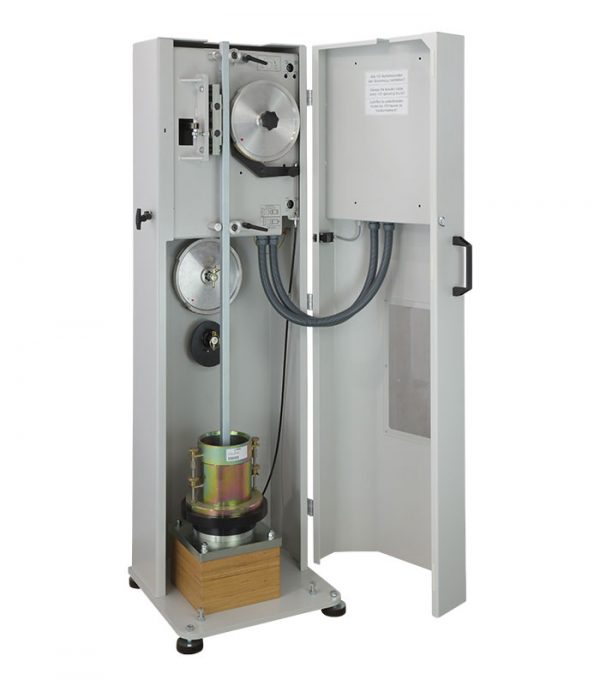

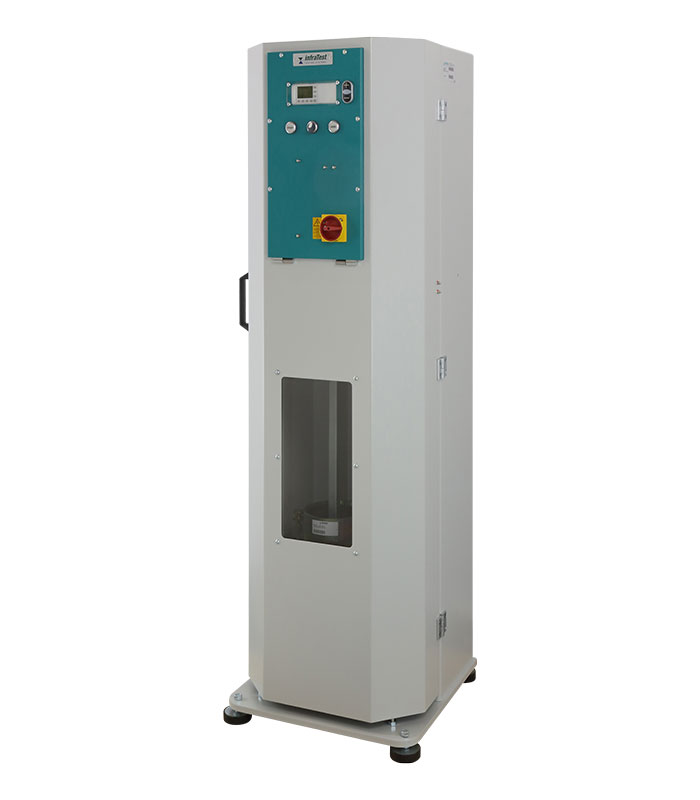

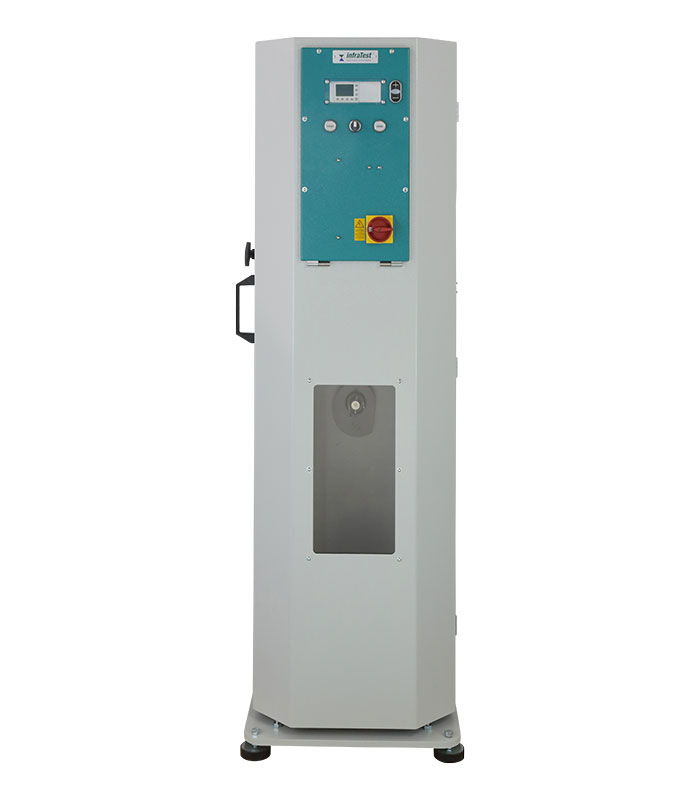

Universal Soil Compactor 100 + 150 mm for the automatic compaction of simple and modified Proctor specimen 100 and 150 mm. Floor model for installation on every stable base with CE safety door according to EC machinery directive. The Proctor mould is placed on the rotating base plate and the corresponding rammer is inserted into the lifting device. The drop height as well as the angle of rotation per drop are controlled by interchangeable drive and angle plates. The movement of the impact surface towards edge / center / edge is made by means of an electric motor. The complete compaction process is controlled by a microprocessor system with universal software and preselectable parameters:
- number of drops per layer
- number of layers
- angle of rotation per drop
- series of drops (center / edge ..)

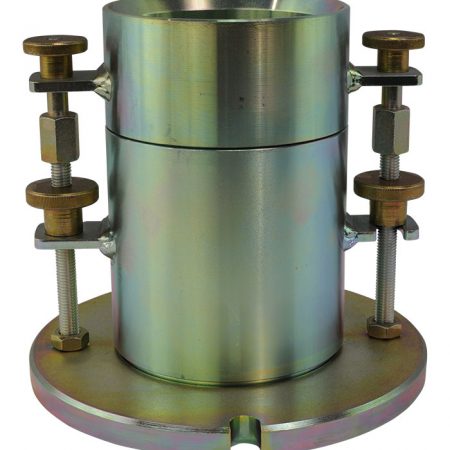

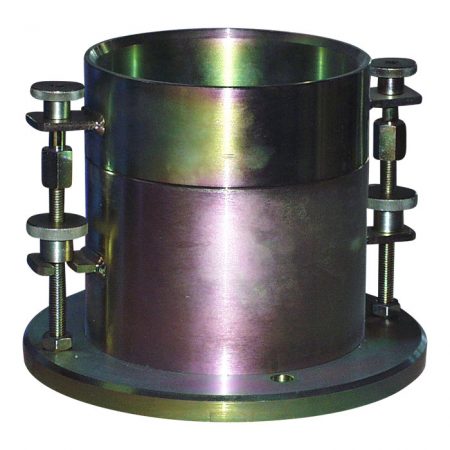

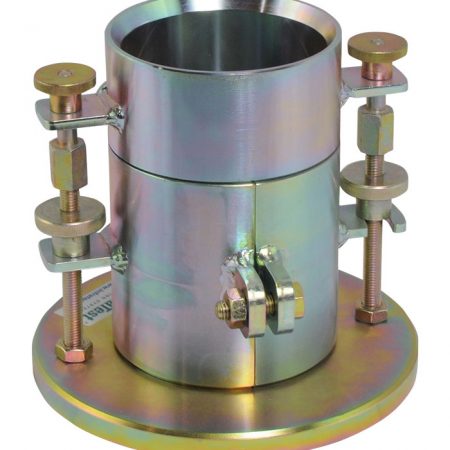

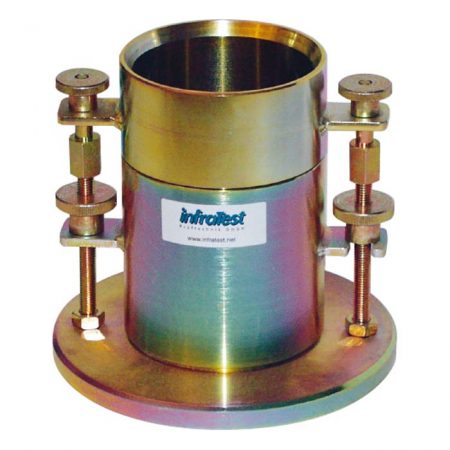

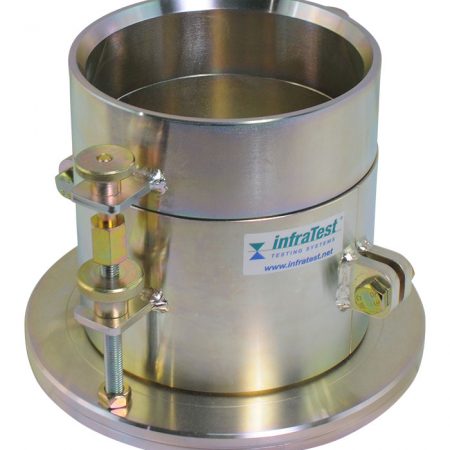

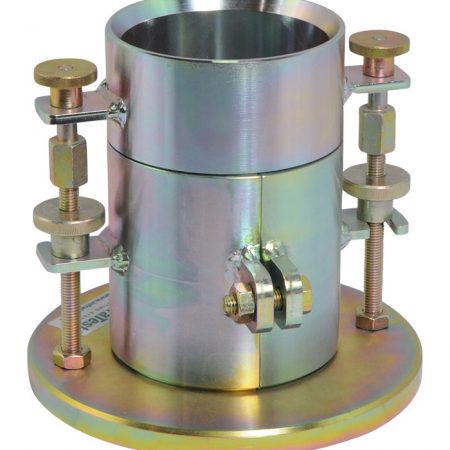

Included in delivery are easy interchangeable drive plates for the drop heights 305 resp. 457 mm (EN-ASTM) as well as angle plates for the angle rotation per drop of 45° resp. 60° (EN). Rammers are required in addition and if necessary additional accessories depending on the standard (10-18550E10 acc. to EN, 10-18550E20 acc. to DIN, 10-18550E30 acc. to ASTM as well as Proctor moulds (10-1752 ). The machine is caracterised by the universal applicability with user-definable parameters and by reduced noise emission due to the safety case with door.
